Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing
  • Fully Automatic Vertical Packing Machine Sealing

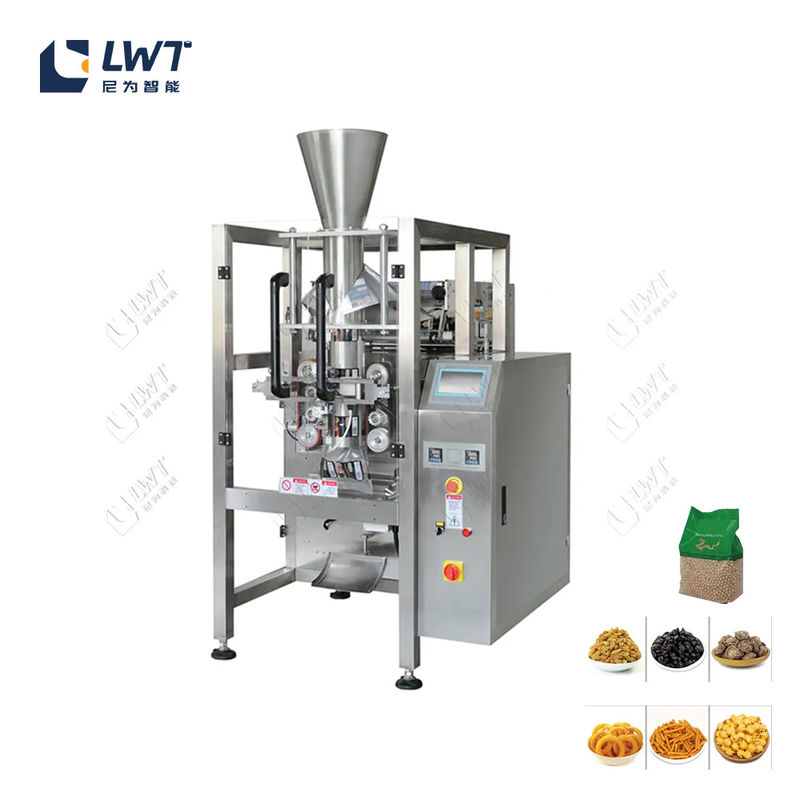

Fully Automatic Vertical Packing Machine Sealing

Place of Origin Shang Hai
Brand Name LeadWorld
Minimum Order 1 SET
Payment Terms According to your needs
Product Details
High Light:

fully automatic vertical packing machine

,

vertical packing machine sealing

,

vertical packing sealing machine

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Product Description

Technical characteristics:

1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

4. External film releasing mechanism: simpler and easier installation of packing film.

5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .

6. Close down type mechanism , defending powder into inside of machine.

Fully Automatic Vertical Packing Machine Sealing 0



Technical Parameters

Production Name Automatic Bag Pouch Packing Sealing Machine
Bag length 30-200mm(L)
bag width 10-50mm(W)
max width of roll film 720mm
packing speed 30-50bag/min/lane
air consumption 0.65mpa
gas consumption 0.2m3/min
powder voltage 220VAC/50HZ
powder 3KW
Application This machine is suitable for various kinds of materials like sugar, coffee granule, coffee powder, milk powder, and liquid, etc.





Product Show



Fully Automatic Vertical Packing Machine Sealing 1



Fully Automatic Vertical Packing Machine Sealing 2

Fully Automatic Vertical Packing Machine Sealing 3



Application products



Fully Automatic Vertical Packing Machine Sealing 4





Tags:

vertical packing machine sealing,

vertical packing sealing machine,

fully automatic vertical packing machine
