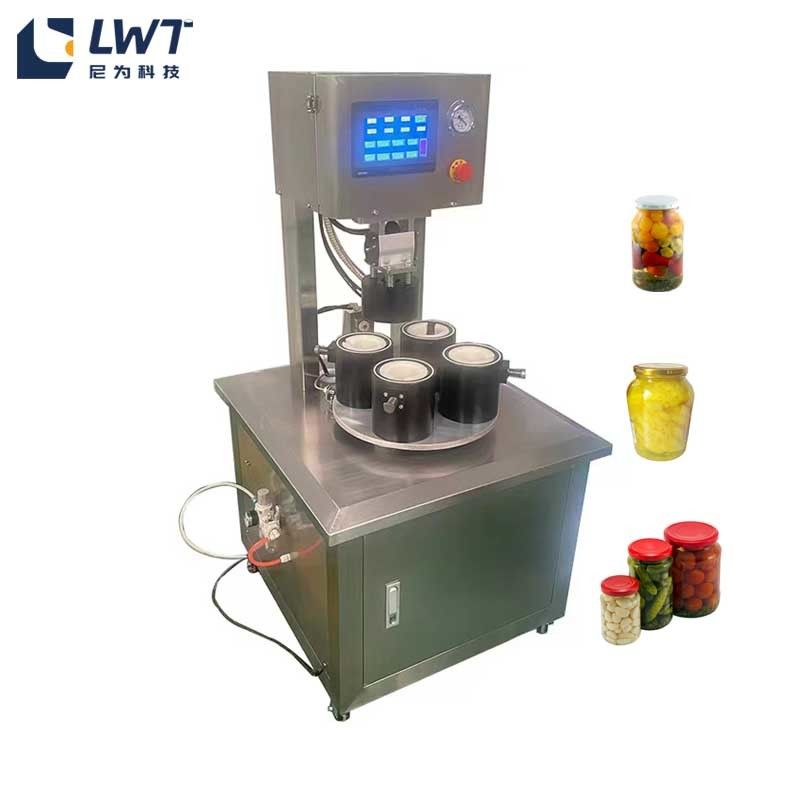

Glass Bottle Canned Food Vacuum Screw Capping Machine 380V

Place of Origin	Shanghai, China
Brand Name	LWT

Product Details

Type:

Capping Machine

Applicable Industries:

Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location:

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

3 Years

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Driven Type:

Electric

Automatic Grade:

Automatic

Voltage:

380V

Packaging Type:

Bottles

Packaging Material:

Plastic, Paper, Metal, Glass, Wood

Dimension(L*W*H):

OEM

Weight:

500 KG

Warranty:

3 Years

Key Selling Points:

Easy To Operate

Product Name:

Glass Bottle Capping Machine

Function:

Auto Feeding Screwing Pressing Caps

Capping Type:

Screw Capping Locking

Usage:

Galss Bottle Capping

Bottle Type:

Plastic Bottle Glass Bottle Cans

Name:

High-speed Automatic Capping Machine

Capping Speed:

30-40bottles/min

Material:

Stainless Steel 304 / SUS316L

Machine Type:

Screw Cap Capping Machine Vibrating Machine

Feature:

High Efficiency Bottle Capping Machine

Marketing Type:

Ordinary Product

Port:

Shanghai

High Light:

Food Vacuum Screw Capping Machine

Glass Bottle Screw Capping Machine 380V

Vacuum Auto Capping Machine 380V

Payment & Shipping Terms

Price

$5,000.00/sets >=1 sets

Packaging Details

The outer part of the product is wrapped with environmental protection film, and the outer part is packed and transported in wooden cases

Supply Ability

50 Set/Sets per Month

Product Description

Recommend Products

Electric Can Sealing Machine

Semi-auto Vacuum Sealing Machine

GT4C3 Cans Sealing Machine

LW-CPC150 Capping Machine

Plastic Cup Sealing Machine

Semi-auto Closing Machine

Electric Capping Machine

Aluminum Foil Sealing Machine

LW-CPC350 Press Cap Machine

Product Description

Technical Parameters(Special specification can be customized)

Product Name	Glass Bottle Vacuum Screw Capping Machine
Diameter of bottle	30~80mm
Height of bottle	40~170mm
Capacity	10-15 bottles/min
Power	220V 50Hz/60Hz 1.3kw
Overall Dimensions	(L)760(W)810(H)1500mm
Frame Material	stainless steel 304
Weight	200kg
Support bottle type	Glass Bottle,Iron Cans,Plastic Jar,Plastic Bottle,Plastic Cup
Application	It is widely used in industries of cosmetics, food, beverage, medicine, biotechnology, health care, personal care chemical etc. It is suitable for all kinds of bottles with screwed caps.

Scope of application: the vacuum capping machine is widely used for capping various glass capping cans in various industries. It is easy to realize automatic vacuuming and capping. Vacuum packaging can better maintain the taste, taste and nutrition of food, and extend the shelf life of food. The company's vacuum capping machine has reached the national standards of economy, ease of use, applicability and reliability. It is suitable for small and medium-sized manufacturers and various bottlers with special specifications.

Product Show

Application

Other Parameters

We can also provide other equipment, such as: empty bottle de-palletizer, bottle washing machine, filling machine, sterilization machine, labeling machine, palletizer, carton erector, sealing machine, case packer, etc.

Empty Cans De-palletizer

Empty cans de-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism, conveyor and
electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.

It can replace the manual ways arrangement and traditional empty can unloading machine, saving a lot of manpower and increasing production effects.

Empty Bottle washing and drying machine

The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is ideal equipment of canned food beverage production line.

Parameter

Name	Empty Bottle Washing Machine	LW-WM100
Capacity	50-300 bottle/min	50-100 cans/min
Washing Section	1-2 Section washing	1 Section washing
can diameter	40-150mm	40-150mm
Power	1.5KW	1.1KW

Auto Weight and Filling Machine

This machine is suitable for glass jar,iron cans,plastic jars,big mouth bottle and so on.Mainly used to Beans,Peach Flap,Peach
Strip,Hawthorn,Strawberries,Grapes,Apricots,Lychee,Braise in soy sauce meat.Mutton, pork,chicken,fish and so on,any kinds of solid products canning measuring and filling.

Model:LW-FWS50

Capacity:2400-3000bph

Measuring range:50g-2000g

Measurement accuracy:±2-10g

Moldel	Capacity	Filling volume
LW-FPP-4A	480bph-720bph	10-60g 30-100g 50-250g 100-500g 200-1000g 500-2500g 1000-5000g
LW-FPP-6A	960bph-1920bph
LW-FPP-8A	1440bph-2880bph
LW-FPP-10A	1920bph-3840bph
LW-FPP-12A	2400bph-4800bph

Fruit and vegetable Cleaning Machine

1, raw materials under the action of pressure and force bubbles sink was fully broken up, turn the flow, cleaning, transfer. 2, The device is an efficient cleaning ability, energy-saving, water-saving, avoiding the waste of resources to reduce production costs 3, the device has a relatively wide range of applications, mainly for: Vegetables, fruits, mushrooms, fish and other granular, leafy, root cleaning products, soaking, sterilization and fixing the like.

Sterilization Machine Retort

It is mainly applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned vegetables and secondary sterilization plastic bottle beverage etc process loading automatically before sterilization,unloading after sterilization,replace the artificial working,save manpower, greatly improve production efficiency.The machine adopts magnetic suction to prevent the chafing and squeezing of the cans.

Filled Cans Washing and Drying Machine

It is applied to clean and dry outside surface of all kinds of canned fruit,canned meat,bottled sauce and all kinds of drinks.(specializedin washing and drying the adhensive sugar water and otheradhenionoutside of the sealed canned products or beverage),applying for tin cans,glass bottles and plastic bottles.

8.Wet Glue Labeling Machine

It Adopts enclosed transmission box,full mechanical transmission,

adhesive attached to various round bottle labels,stable and reliable.suitable for round pot labeling.

9.Filled Cans Palletizer/De-palletizer

Filled Cans Palletizer is suitable for palletizer and depalletizer of the filled glass bottles,filled tin cans,empty tin cans,it is main composed of conveying system and palletizing system.Working way uses magnetic grabmovement.

10.Carton Erector

The automatic boxopening machine is used to open the carton board, and the bottom of the box is folded according to a certain procedure, then sealed with tape to be delivered to the special equipment of the boxing machine.

Case Packer

Carton packing machine has the characteristics of simple structure, easy to maintain.Use Siemens PLC, Danfoss transducer,Schneider low-voltage electrical appliances and the SEW motor,the machine performance is stable and reliable .

Cans Selaing Machine

Automatic vacuum sealing equipment, especially suitable for tin cans, aluminum cans and other bottle types. It has vacuum pumping function and can also add nitrogen.

Company Profile

ShangHai LWT Intelligent Technology Co., Ltd.is one of the leading companies in China's canning equipment industry. Since its establishment in 2009, it has been in the canning industry for more than ten years. Its business covers more than 50 countries and regions around the world, focusing on automated canning and filling, The research and development, production, sales, and service of packaging production line equipment are committed to promoting the development and progress of society and the industry in order to achieve a more efficient, smarter and more sustainable future.

We have successively cooperated with many companies in the United States, Europe and other countries to develop automated production equipment with a high starting point and advanced technology. The main core accessories use internationally renowned brands, which can provide you with your choice Long-term and reliable guarantee.

In the past decade or so, LWT has successfully provided many domestic and foreign companies with canning, filling, and packaging production line solutions, Now we will offer you more and more production packaging line end of line solutions. Based on years of accumulated industry experience, we can also provide you with excellent and suitable products, services, and solutions.

Cooperative Customers

LWT has obtained a number of patent certificates for its self-developed products, passed the CE certification, and has also obtained the "specialized and special new enterprise", "high-tech enterprise", "Shanghai science and technology small and medium-sized enterprise", "Top 50 enterprises in China's light industrial equipment manufacturing industry" and many other honorary titles.

LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.

LWT is not only our ambition but also the inexhaustible driving force for our struggle. Looking forward to the future, LWT will carry the innate vitality and passion, the same as usual, make excellent, practical, stable, and user-friendly high-quality products, and bring customers cost-effective quality choice, long-term economic benefits, and sustainable development.

We are willing to join hands with you to grow up, seek common development and create a better future! More details about LWT Machinery, pls to contact us any time:).

FAQ

Q1: What are your company’s main products? A: All production canned packaging line end of the line and Related Packaging Machinery. If this is not the machine you want, please visit our other machines.

Q2.Are you a manufacturer or trading company? A: Yes, We are a manufacturer verified by ALIBABA and we have our own R&D and Production team

Q3.Where are you located? Is it convenient to visit you? A: Yes, We are located in Songjiang Shanghai, traffic is very convenient. Welcome to our factory anytime

Q4: How can you guarantee the quality? A: 1. We have completed the working system and procedures and we follow them very strictly. 2. Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced. 3. The electrical pneumatic components are from world-famous companies, such as Germany's Siemens, Japanese Panasonic, etc. 4. We will do strict test running after the machine is finished. 5. Usually our machines are certified by CE. Also, Leadworld machines can be passed the relevant certification standards of the customer market according to customer needs

Q5: Can you design the machine according to our requirements? A: Yes. We not only can customize the machine according to your technical drawing but also can he new machine according to your requirements.

Q6: Can you offer overseas technical support? A: Yes. We can send the engineer to your company to set the machine and train your worker if needed.

Q7: Why do our customers trust and choose us?

A: 1. Leadworld is a company with more than 12 years experience in canning production line customization 2. Serving 200+ overseas customers, 50+ customers all over the world 3. Support third-party online transactions to ensure the safety of funds 4. On-site installation and training services are available 5. Support video inspection or third-party inspection

If you have more questions about our product, please send us an inquiry below.

Commonly, you will get a reply in 24 hours. Thank you
