Shanghai LeadWorld is specialized in providing whole line of fish canned food, such as canned tuna, croaker, octopus, mud carp,sardine,mackerel and so on. According to the plant area, we can provide a complete set of production line equipment from raw material processing, washing, fling, sealing,loading and unloading cages, sterilization until packaging, and can provide the entire plant planning and design.
Working Process:
Empty can cleaning → Disinfection → Raw material pretreatment → Filling → Pre-sealing → Exhaust → Sealing (vacuum sealing)→Sterilization → Cooling → Insulation inspection → Finished product
Related Machines:
Empty Cans De-Pelletizer
Empty cans De-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism, conveyor and electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.
Magnetic Cans Washing Machine
The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is ideal equipment of canned food beverage production line.

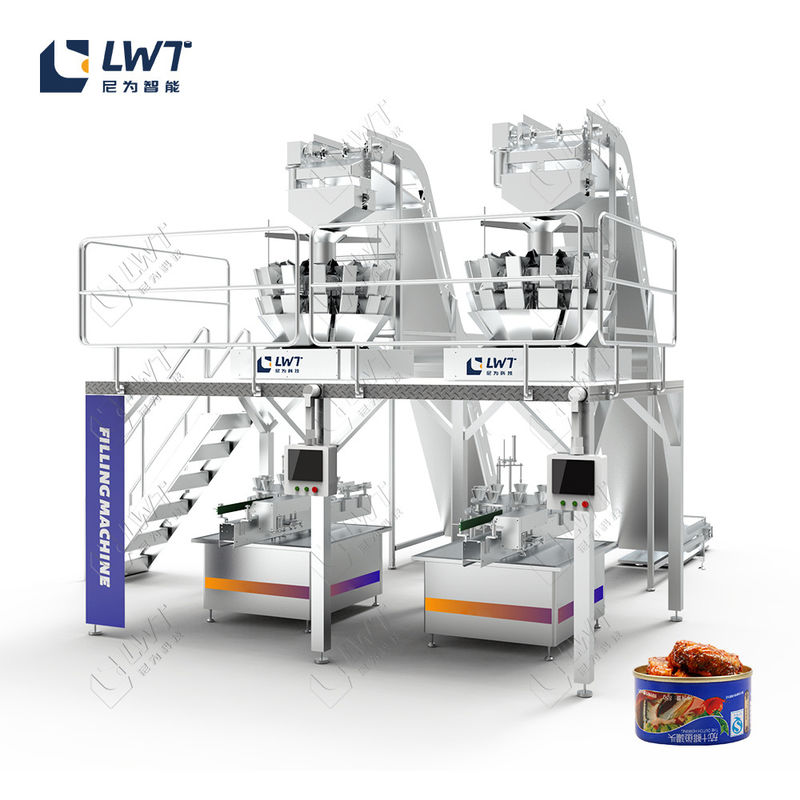

Filling Machine
The device is used for automatic weighing of all kinds of solid raw materials, filling in glass bottles, tin cans and other containers within the device. To complete the automatic measurement of solid raw materials, feeding, canning, finished product delivery of all the packaging process.
Cans Sealing Machine
Automatic Vacuum Sealing equipment, it specially used for tinplate, aluminum round cans and various different sealing types.
The machine can vacuumize and add nitrogen, thus to keep the product long time.
Baskets Loading And Unloading Machine
It is mainly applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned vegetables and secondary sterilization plastic bottle beverage etc process loading automatically before sterilization,unloading after sterilization,replace the artificial working,save manpower, greatly improve production efficiency.
Sterilization Machine Autoclave
The Machine is suitable for high temperature and high pressure sterilization of canned meat,beans,mushrooms,fish etc.
Round Bottle Labeling Machine
KL-700 main parts would be labeling head, stainless steel 304 frame, conveyor system, sponge pressing while and Siemens PLC touch screen and servo motor for fast speed labeling.Applicable products:Glass bottle, PET bottle, tin can, bucket and round cups.
Case Packer
The fully automatic case packer is widely used in industries such as food, daily chemicals, and chemicals. It is mainly used for packaging bucket-packed jams, concentrates, beverages, and various canned products.
The fully automatic case packer is composed of a frame, bottle feeding conveyor, box feeding conveyor, bottle suction unit, box opening mechanism, and electrical cabinet.
Gantry Palletizing Machine
Structural frame welding bonding method, strong and durable,match with adjustable base.Main machine lifting platform adopt SEW motor;inputting speed belt conveyor help to separate cartons:Machine include roller conveyor of pallet storage area,2.5m length of full stack outputting conveyor,roller conveyor,safety protection device;Adopt Germany Siemens PLC control system.man-machine interface,portable fault automatic display.
Robot Palleting Machine
Robot palletizer is the container has been loaded in the cartons, according by permutation code used to pallet( wood,plastic),automatic stacking, can be superimposed layers, then, is advantageous for the forklift truck to warehouse storage.The equipment adopts PLC+ touch screen control to realize intelligent operation management, easy to master.It can greatly reduce labor force and reduce labor intensity.
The palletizer is the material bag, carton or other packaging material sent by the conveyor to automatically stack up the stackand carry the equipment to the stack.
Customization:
Customized Tomato Sauce Filling Production Line
Our Customized Tomato Sauce Filling Production Line is designed to meet your specific needs. It has a high production capacity and can be customized to fit your exact requirements. It is powered by a 220V/380V power supply and has an air pressure range of 0.4-0.6MPa.
Support and Services:
Our Filling Production Line technical support and service includes:
- 24/7 online technical support
- On-site installation and commissioning
- Operation and maintenance training
- Regular maintenance and repair services
- Replacement parts and components
- Fault diagnosis and troubleshooting
- Product upgrades and updates
- Consulting and advisory services
Packing and Shipping:
The Filling Production Line is packaged and shipped with the following components:
- Filling Machine
- Bottle Rack
- Filling Nozzle
- Control Panel
- Cables and Wires
The components are packaged in an industry-standard box and shipped using a reliable courier service.
