LWT Automatic Carton Packaging Machine Carton Erector Machine

Place of Origin Shanghai, China
Brand Name LeadWorld
Certification CE and according to your market
Product Details
Type:
SEALING MACHINE
Max Speed:
5m/min, 75pcs/min, 18m/min, 100pcs/min, 6m/min, 25pcs/min, 150pcs/min, 12m/min, 80pcs/min, 50pcs/min, 140pcs/min, 40pcs/min, 110pcs/min, 85pcs/min, 20M/MIN, 45pcs/min, 10m/min, 14m/min, 7m/min, 60pcs/min, 16m/min, 90pcs/min, 20pcs/min, 120pcs/min, 30pcs/mi
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Ro
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
L3120*W1250*H1740mm
Key Selling Points:
Automatic
Warranty Of Core Components:
3 Years
Core Components:
PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Product Name:
Carton Erector Packing Machine
Function:
Industry Packaging Line Carton Erector
Material:
Stainless Steel
Application Fields:
Production Line Secondary Packaging Line
After Warranty Service:
Video Technical Support/ Online Support/Spare Parts
Technical Support:
Field Maintenance And Repair Service
ODM&OEM:
Yes
Speed:
50 Pcs/min Can Be Customized
Port:
Shanghai
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
According to your need for custom
Product Description

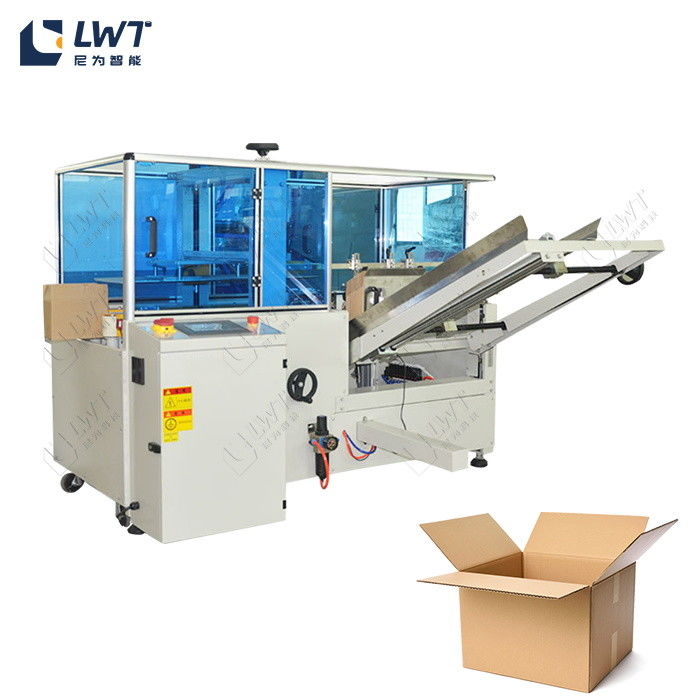

LWT Automatic Carton Packaging Machine Carton Erector Machine
LWT Automatic Carton Packaging Machine Carton Erector Machine 0
Main Features:
1.Vertical storage,cartons can be added at any time without stopping the machine.

2. Suitable for forming and sealing cartons of the same size.

3.Manually adjust to change the carton sizes(finishing in 2-3minutes).

4. Advanced photo electricity induction control system.

5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.

6.Cutter Safety system to prevent hands form stabbed by the cutter

7.Heavy duty built,both steel and stainless steel types.
LWT Automatic Carton Packaging Machine Carton Erector Machine 1
Model
LW-EV18
LW-EH30
LW-EH50
Capacity
18pcs/min
30pcs/min
50pcs/min
Carton collecting
100pcs(1000mm)
80pcs(800mm)
80pcs(1000mm)
Carton size
L:250-400mm
W:150-350mm
H:100-350mm
L:240-510mm
W:190-400mm
H:120-400mm
L:250-450mm
W:150-400mm
H:100-300mm
Power
220V 1Φ 200W
380V 3Φ 746W
380V 3Φ 746W
Air Consumption
0.6Mpa 450NL/min
0.5Mpa 300NL/min
0.5Mpa 300NL/min
Machine Size
L2400*W1200*H1450mm
L2372*W1210*H1820mm
L3120*W1250*H1740mm
Belt Size
48,60,75mm
2'',2.5''
2'',2.5''
LWT Automatic Carton Packaging Machine Carton Erector Machine 2
LWT Automatic Carton Packaging Machine Carton Erector Machine 3
Leadworld Conventional Carton Erector Machine:
LWT Automatic Carton Packaging Machine Carton Erector Machine 4
Vertical Carton Erector Machine
LWT Automatic Carton Packaging Machine Carton Erector Machine 5
Horizontal Carton Erector Machine

LWT Automatic Carton Packaging Machine Carton Erector Machine 6








FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.
