Packing Machine Palletizer System Case Carton Bag Case Packing Palletizer

Place of Origin	Shanghai, China
Brand Name	LWT

Product Details

Type:

Packaging Line

Condition:

New

Packaging Material:

Plastic, Paper, Metal, Glass, Wood

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

AC 380V

Dimension(L*W*H):

OEM

Warranty:

3 Years

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Product Name:

Automatic Gantry Palletizing Machine

Keywords:

Fully Automatic Palletizing System

Name:

Palletizer Depalletizer

Function:

Stacking

Machine Type:

Packing Line Solution

Port:

Shanghai

High Light:

Packing Machine Palletizer System

Case Carton Bag Palletizer System

Case Packing Palletizer

Payment & Shipping Terms

Price

Price Negotiable

Packaging Details

Packing Machine Automatic Stacker Gantry Palletizing Machine Palletizer
case packer wooden case

Supply Ability

200 Set/Sets per Month Gantry Palletizing Machine

Product Description

Packing Machine Palletizer System Case Carton Bag Case Packing Palletizer

Product Description

LWT PZ series palletizer is a gantry-type stacker mainly used in food, beverage and chemical industries. It is suitable for palletizing various packaging items, such as cartons, plastic boxes, film bags and barrels.

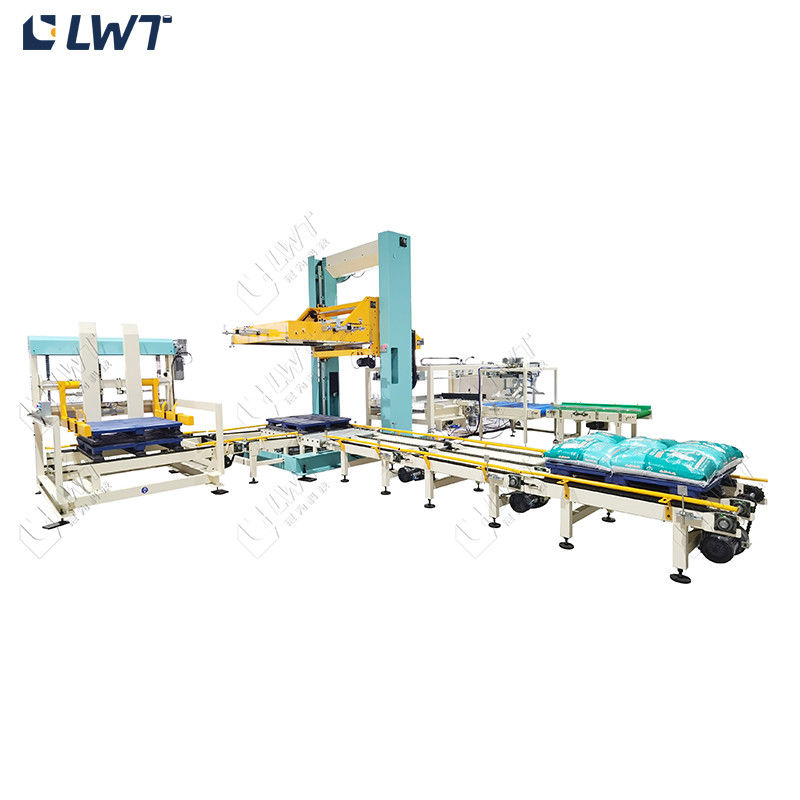

Packing Machine Palletizer System Case Carton Bag Case Packing Palletizer 0

Features Of Packing Machine Palletizer

The main components of the equipment include differential belts, steering mechanisms, case sorting areas, stacking areas, main lifting mechanisms and depalletizing rollers. The structural frame is of welded construction, very strong and durable, and features an adjustable base. The main lifting platform is driven by SEW motor. Accelerated conveyors at the entrance separate incoming boxes. The stacking area uses a powered roller conveyor, and the pallets are output via a free roller conveyor. The system adopts Siemens PLC control system and has a movable human-machine interface that can automatically display fault information.

This palletizer series can complete automatic operation workflow, including automatic carton feeding, carton steering, line separation, stacking, removal, lifting, and pushing pallets into, down, and out.

Working Process

Run automatical include auomatic inputing box,veer carton,separate lines,Be piled in heaps,Remove,lifting,push pallet into,down,come out and other steps.

Main Technical Parameters:

Model	LWT-PSS10A	LWT-PSS10D	LWT-PSG30	LWT-PSG60
Capacity	5-12carton/min	5-10carton/min	20-30carton/min	40-60carton/min
Pallet Size	L1200W1200150mm			L1200W1200150mm
Stacking way	Servo			Gantry
Stacking H	<1800mm	<1900mm	<2000mm	<2000mm
Equipment Size	380010001400mm	262024403500mm	L8400W4700H3700mm
Power	380V 7KW	380V/3P 7.2KW	380V/3P 11KW	380V/3P 12KW
Air Consumption	0.8m3/min	210L/min 6kg/cm2	110L/min 6kg/cm2	180L/min 6kg/cm2
Conveyor H	650mm	650mm	850mm	850mm
Pallet Conveyor H	300mm	650mm	650mm	650mm
Max weight	1000KG	1500KG	1500KG	1500KG

Product Show

Recommend Products

Our Service

Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.

During Sales:

1) Depends on the client's need to custom base on the standard machine.

2) Repeat 20 ongoing hours testing equipment operation stability.

3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.

After-Sale:

1. we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;

2. Supply systematic operation training for client workers.

3. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.

4. If quality problems arise, the supplier provide technical support and timely supply wearing parts.
